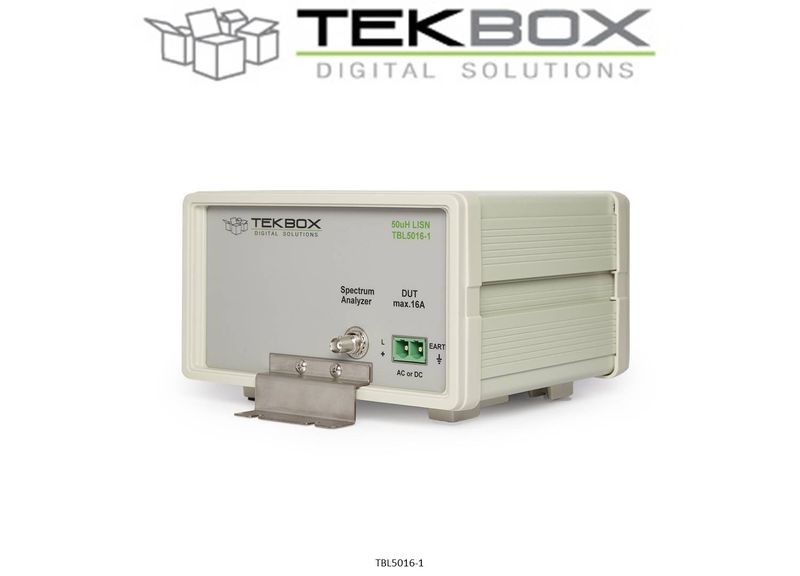

TekBox TBL5016-1 50uH 16A AC Line Impedance Stabilisation Network LISN
Stock Code:
Item: TBL5016-1
Description
The TBL5016-1 50µH LISN is a device required to setup conducted noise measurements of DC or AC-powered electronic equipment. It is designed according to CISPR 16-1-2 and MIL-STD-461F standard and characterized in the frequency range of 9kHz to 100 MHz.
The LISN is a 50?/50µH+5 ? single line design with a high current jumper to short the 5 Ohm resistor and configure it as 50?/50µH LISN according to CISPR 16-1-2. The LISN is characterized up to 100 MHz which means that the LISN can be used for the combined range of 9 kHz to 100 MHz.
Manufacturer:
TEKBOX
Model Number:
TBL5016-1
Warranty:
1 YEAR
Available:
2 WEEKS
$1,279.00 ex GST
$1,406.90 inc GST
