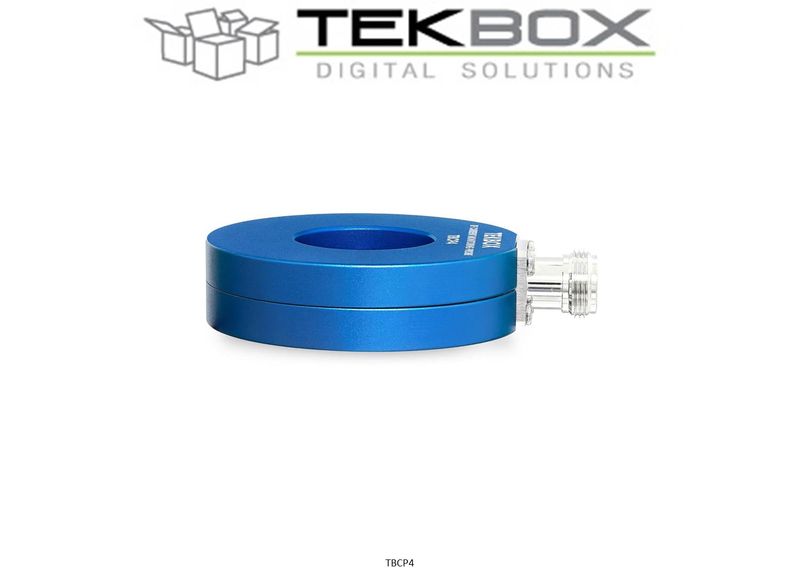

Current Monitoring Probe, fixed aperture 32mm, 10 kHz to 250 MHz
Stock Code:
Item: TBCP4-250
Description
The TBCP4-250 is a fixed aperture RF current monitoring probe, it has a very flat response with a 3dB bandwidth of 250 MHz and is characterized and usable over the frequency range from 10kHz to 250 MHz. The aperture of the RF current monitoring probe is 32 mm. Its transfer impedance is close to 14 dB Ohm in the range from 400 kHz to 250 MHz.
Tekbox supplies an optional extra calibration fixture corresponding with the TBCP4 series of fixed aperture current probes.
Manufacturer:
TEKBOX
Model Number:
TBCP4-250
Warranty:
1 YEAR
Available:
2 WEEKS
$676.00 ex GST
$743.60 inc GST
