Current Monitoring Probe, fixed aperture 25mm, 30 kHz to 500 MHz
Stock Code:
Item: TBCP1-500
Description

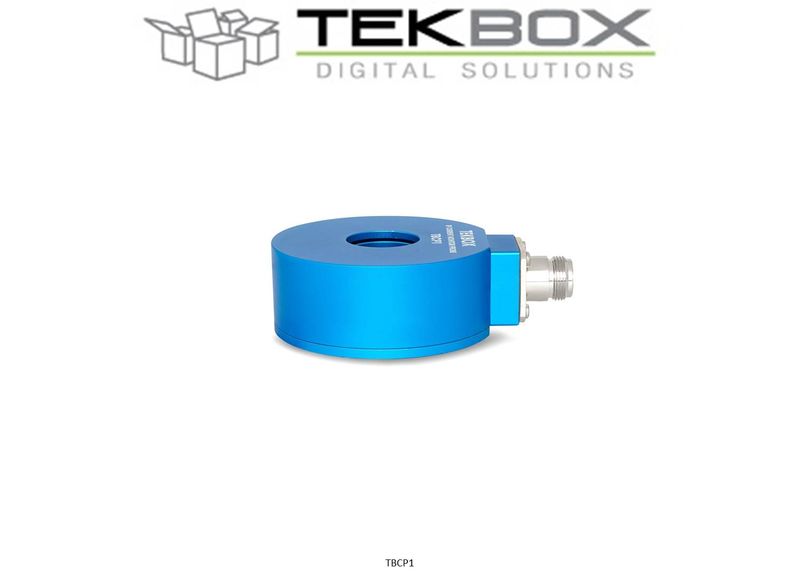

The TBCP1-500 is a fixed aperture RF current monitoring probe
The probe has a very flat response with a 3dB bandwidth of 500 MHz and is characterized and usable over the frequency range from 30kHz to 500 MHz. The aperture of the RF current monitoring probe is 25 mm. Its transfer impedance is > 15 dB Ohm in the range from 300 kHz to 500 MHz.
Tekbox supplies an optional extra calibration fixture corresponding with the TBCP1 current probe series.
Manufacturer:
TEKBOX
Model Number:
TBCP1-500
Warranty:
1 YEAR
Available:
2 WEEKS
$773.00 ex GST
$850.30 inc GST
