TBS1000C Digital Storage Oscilloscope
Offering affordable performance in a compact design, the TBS1000C digital storage oscilloscope provides the features, versatility and durability required by today’s educational institutions, embedded designers, and maker community. The TBS1000C includes a 7-inch WVGA color display with up to 1 GS/s sample rate, bandwidths from 50 MHz to 200 MHz and a five-year warranty. Its innovative courseware system integrates lab exercises with step-by-step instructions for students. The HelpEverywhere® system provides useful tips and hints throughout the user interface to make the instrument more approachable to a new user.
Fast and Easy-to-Use Oscilloscopee
Excel in your pursuits with the TBS1000C. Equipped with features and capabilities to help you learn and work faster.
- 7-inch WVGA color display with 15 horizontal divisions shows 50% more signal

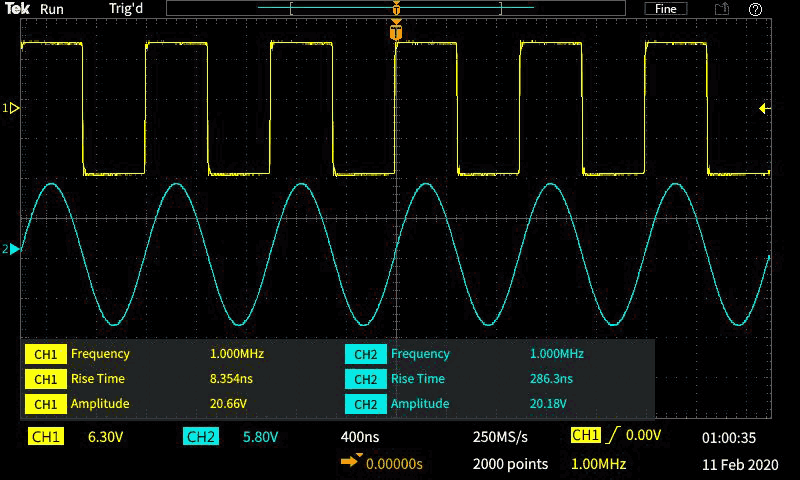

- 32 automated measurements enable fast and convenient testing of a wide variety of signal conditions

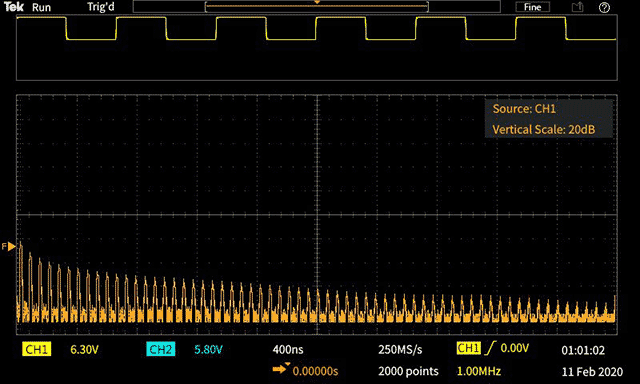

- Dual window FFT with simultaneous time and frequency domain views to understand signal frequency content
- Trigger frequency counter
- Pan and zoom capability to quickly see signal details in an area of interest
- Ten languages supported by the UI and front panel overlay
- Small footprint and light weight
- Fanless design for low noise operation
Simple. Reliable. Trusted.
Unlock productivity and peace of mind with the TBS1000C. Welcome an era of productivity and ease when you choose to invest in a dependable and durable oscilloscope, with services and support from a trusted brand. Elevate your innovation experience.
- Built-in help and intuitive UI empower you to focus on testing and design, not learning how to use the oscilloscope
- Free technical support to quickly resolve issues, save you time, and allow you to work with ease
- 5-year warranty to safeguard your investment
Learn now, use forever.

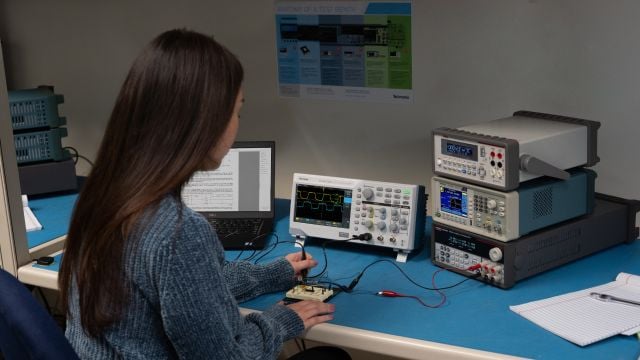

Unlock educational excellence with the TBS1000C and equip your students with workforce-ready equipment that sets them on the path to becoming top-tier engineers. This ultimate companion for educators is designed to streamline your teaching process with special features.
- HelpEverywhere provides on-screen tips that explain different instrument settings
- Built-in oscilloscope handbook provides operating instructions and oscilloscope fundamentals
- Integrated courseware provides lab exercise guidance on the display
- Equipped with a Kensington lock to ensure your equipment remains safe in the lab, ready for student use each day
- Disable features like Automated Measurements, AutoSet, and Cursors to encourage learning and retention of fundamental concepts
- Backed by free technical support and a 5-year warranty
- Use our discount for eligible education institutions to invest in industry-leading test and measurement equipment

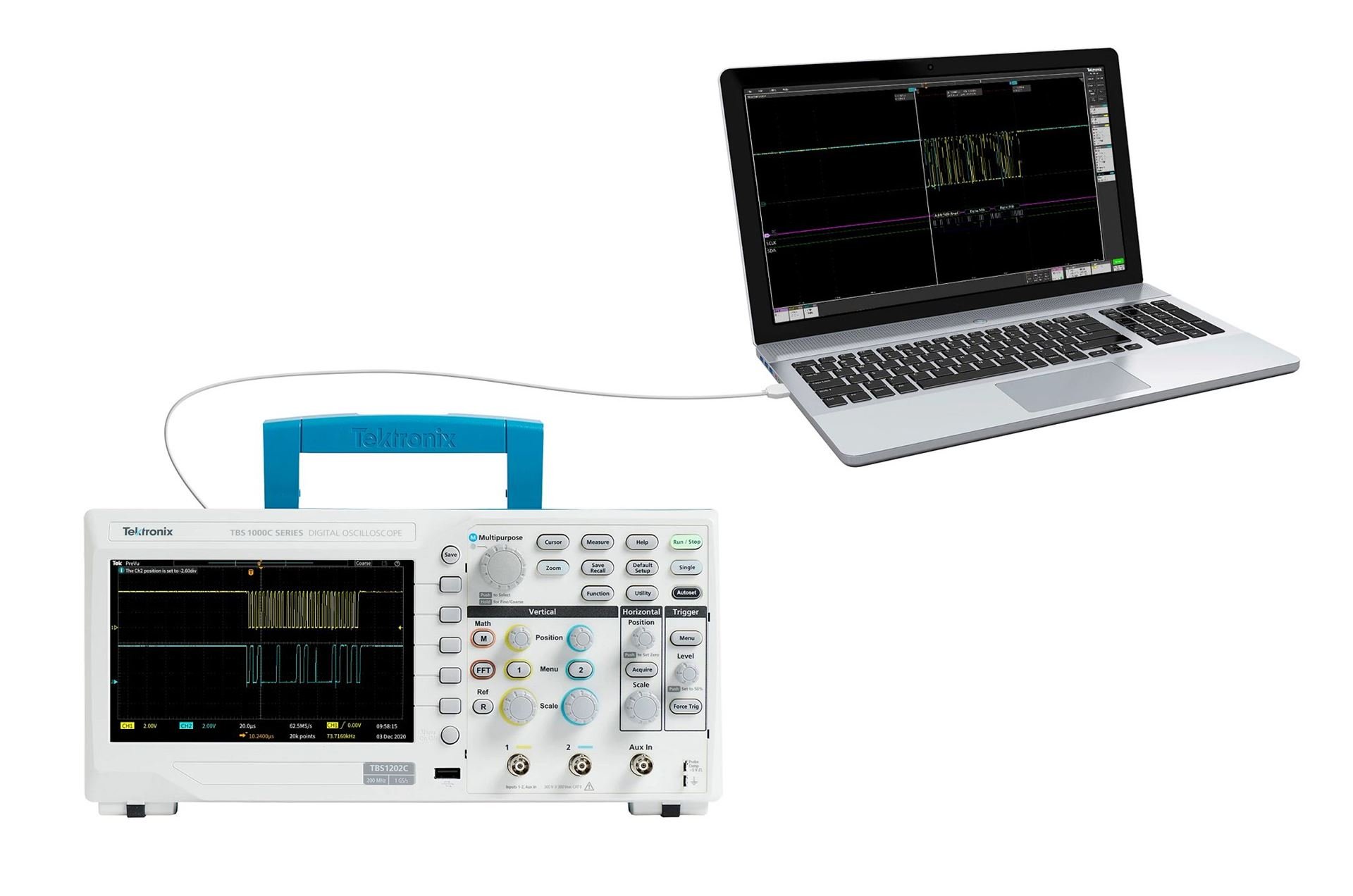

Remote Work and Collaboration
Driven by the rapid transition to remote-hybrid learning, there are a number of new Tektronix software solutions which help with remote access, data analysis, as well as remote data sharing and collaboration.
Learn more about each software offering, and how it can enhance the remote learning experience.
| Model | Analog Bandwidth | Sample Rate | Record Length | Analog Channels |
|---|---|---|---|---|
| TBS1052C-EDU | 50 MHz | 1 GS/s | 20k points | 2 |
| TBS1072C | 70 MHz | 1 GS/s | 20k points | 2 |
| TBS1202C | 200 MHz | 1 GS/s | 20k points | 2 |
| TBS1052C | 50 MHz | 1 GS/s | 20k points | 2 |
| TBS1102C | 100 MHz | 1 GS/s | 20k points | 2 |
| Tektronix TBS1000C | Tektronix TBS2000B | |
|---|---|---|
| Display | 7 inch | 9 inch (800x480) |
| Record Length | 20K points | 5M points |
| Horizontal Grids | 15 | 15 |
| Channels | 2 | 2 or 4 |
| Bandwidth | Up to 200 MHz | Up to 200 MHz |
| Sample Rate | Up to 1 GS/s | Up to 2 GS/s |
| Automatic Measurements | 32 | 32 |
| Applications | R & D and Education | R & D and Education |
| Education Solution | Courseware included, HelpEverywhere, autoset cursors and measurements, disable autoset cursors and measurements | Courseware included, HelpEverywhere, ScopeIntro, disable autoset cursors and measurements |
| Warranty | 5 years | 5 years |
Education
The TBS1000C digital storage oscilloscope offers new features that enable educators to devote more time to teaching engineering concepts and less time on lab setup and management.
- Built-in Courseware Lab Viewer
- HelpEverywhere system with on-screen tips and hints throughout the user interface
- Ability to independently disable AutoSet, Cursors and Measurements
- Five-year warranty as standard
- Kensington lock
The TBS1052C-EDU model offers the same features but is exclusively priced for educational institutions.
Embedded Design
The TBS1000C digital storage oscilloscope provides the embedded design engineer with a 7-inch WVGA display that shows 50% more horizontal signal with 15 divisions.
- Easily and quickly pan and zoom to quickly see signal details in areas of interest
- 32 automatic measurements enable you to measure the most commonly needed parameters
- Built in FFT for quick frequency domain analysis
