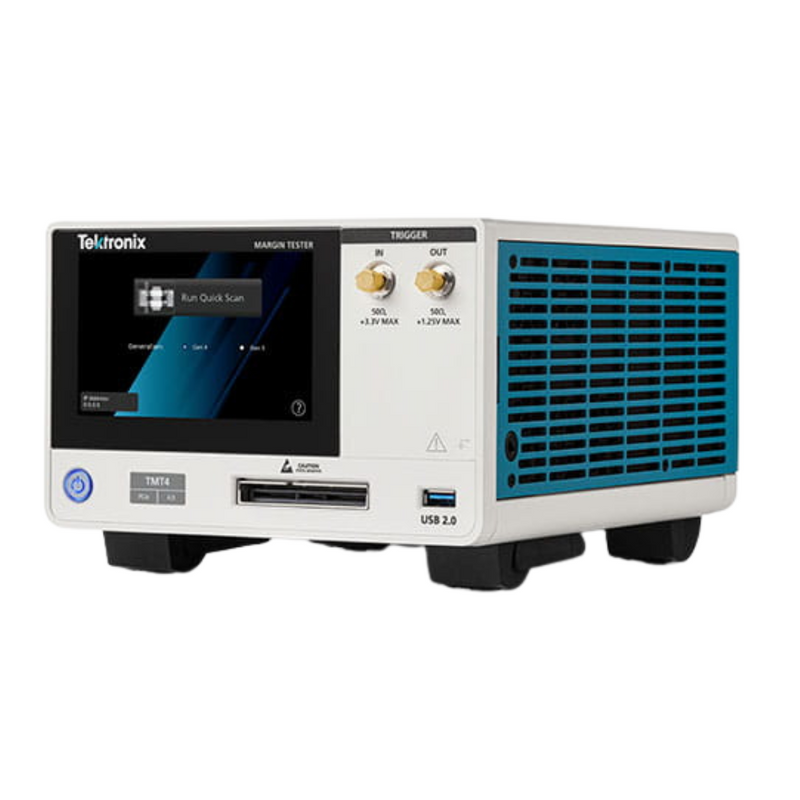

TMT4 PCIE MARGIN TESTER

Description

Industry’s first dedicated Transmit/Receive (Tx/Rx) lane margining tool, the Tektronix TMT4 allows you to easily assess the link health of your PCIe® generation 3 and 4 designs in minutes, not days. Acting as an active link partner with the device under test (DUT), the instrument can control presets via protocol and quickly display eye diagrams with their associated link training parameters, providing insights into potential design flaws on a lane-by-lane or preset-by-preset basis.
PCIE® and PCI Express® are registered trademarks and/or service marks of PCI-SIG.
