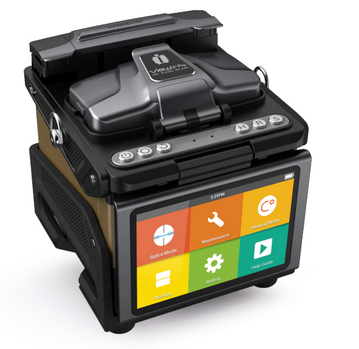

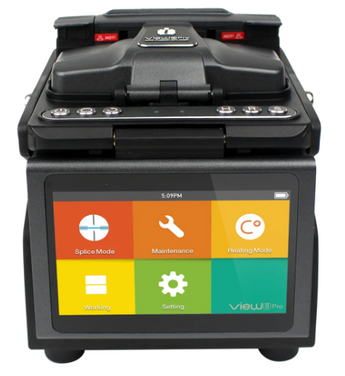

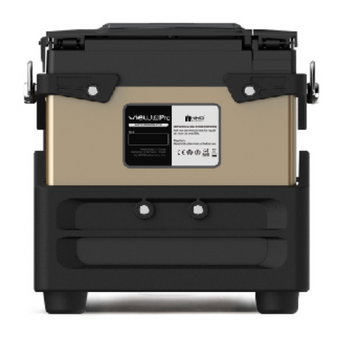

VIEW8 Pro, World-Class Splicing And Heating Time

VIEW8 PRO is a premium core-alignment splicer with the world’s highest specification, offers maximum work efficiency through the quick mode of 6s splice time and 9s heating time.







Contact UsBrochure


The Characteristics



  • Ultra-High Capacity Battery
  • Built-in IoT Module for Mobile Data Communication
  • Precise Fiber Core Alignment Technology, Advance Multi-Control Industrial CPU for motors
  • Active Asset & Work Management Platform
  • Web-based, Real-time Operation System
  • User Friendliest Interface with Built-in Videos, 5” Color LCD Touch Screen, Double Tapping (Zoom In & Out), High Definition CMOS









Technical Specification




Splicing Time
6 sec (quick mode) / 8 sec (SM auto mode)

Heating Time
11 sec (typical heating time)

Number of Fiber
single

Fibre View & Magnification
320 ~ 520X Magnification

Dimension
143W x 158D x 162H mm (including rubber bumper)
130W x 157D x 150H mm (excluding rubber bumper)

Display
touch screen / button






INNO Instrument Video ViewPRO Manager



INNO Instrument ViewPRO Manager is a cloud-based management system that integrates with our splicing devices enabling data centralization and resource pooling into a data lake. With complete and comprehensive raw data, ViewPRO Manager features data analytics with a user-friendly presentation that gives better insights into splice records and performances of each device. Provided with the operation overview allows economical and efficient workload management as well as making informed decisions.

Standard Package



Main Unit



 VIEW8 Pro



Cleaver



 V10 PRO 1 Each



Fiber Holder



 FH-45 1 Set



SOC Holder



 SH-SOC-R 1 Each



SOC Heater Cover



  HTS-SOC-04 1 Each



AC Adapter





JS-180300





1 Each





Cooling Tray





CG-22





1 Each





Electrode





E-70



1 Set



Battery Pack



LBT-30

 1 Each



Power Cable



 ACC-25 1 Each



Carrying Case



 ICC-50 1 Each



Work Tray



 IWS-06 1 Each



Work Tray Bolt (M6*8)



 WTB-01 2 Each



Shoulder Strap



 ST-01 2 Each



USB Cable



 USB-7P 1 Each



USB Cable



  USB-10P 1 Each



V-Groove Cleaning Brush



 CB-01 1 Each



Thermal Stripper Charger



 JS-1500 1 Each



Quick Reference



   1 Each





Optional Accessories







Alcohol Pump



 TK02-AP01 1 Each



Stripper



 TK02-MP01 1 Each



Cigarette Lighter Cable



 CJ-11 1 Each



Electrode Grinder



 EG-18  1 Each



Heating Sleeve (40mm)



 PS-60S 1 pack (100 each)



Heating Sleeve (60 mm)



 PS-60S 1 pack (100 each)
